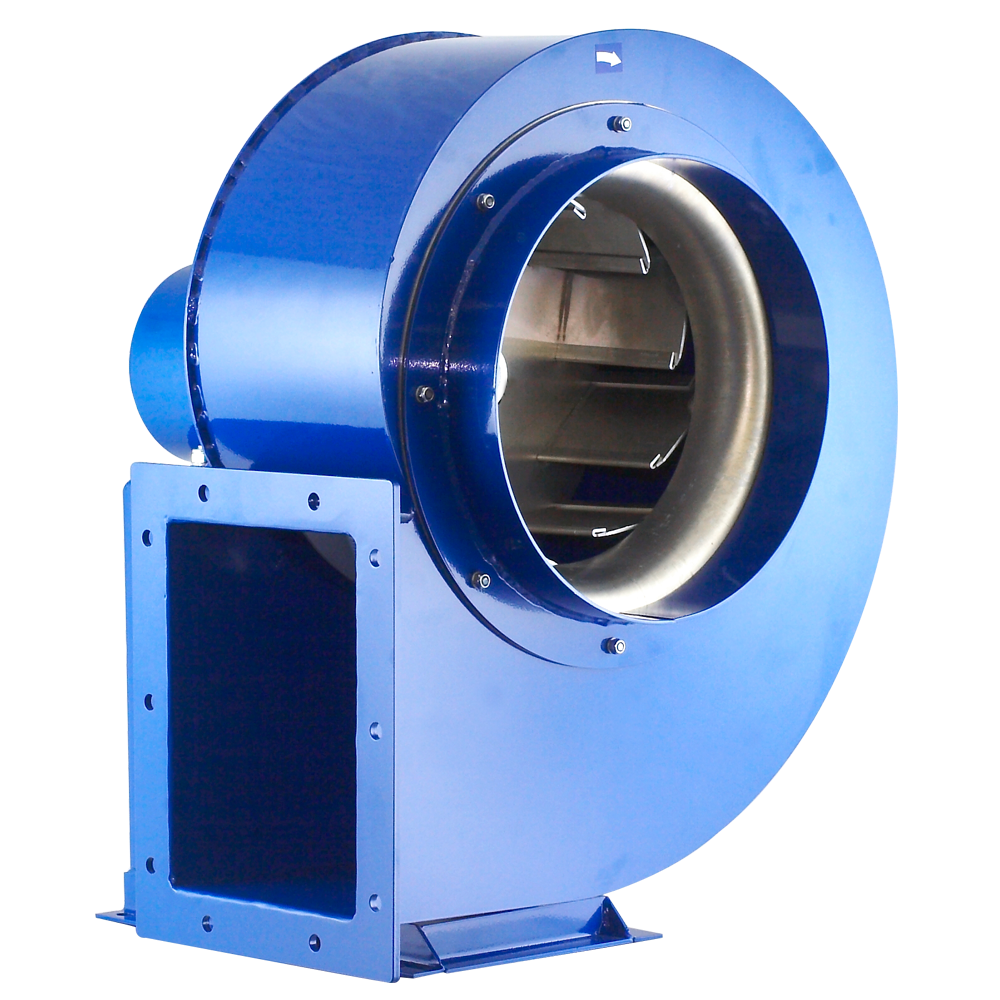

Puhallin on suunniteltu ei-aggressiivisten ja räjähtämättömien kaasujen siirtämiseen ilman pilaantumista.
Tyypillisiä käyttökohteita:
Type | A | B | C | E | F | G | H | I | J |
---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-2-315/102-075T | 512 | 640 | 491 | 225 | 400 | 198 | 224 | 233 | 291 |
MBB-4-315/102-037T | 512 | 640 | 491 | 225 | 400 | 198 | 224 | 233 | 291 |
Type | K | L | S | T | X | N1 | N2 | N3 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-2-315/102-075T | 268 | 326 | 184 | 152 | 10 | 18 | 168 | 318 |
MBB-4-315/102-037T | 268 | 326 | 184 | 152 | 10 | 18 | 168 | 318 |
Type | N4 | P1 | P2 | P3 | X1 | ØD | ØO | ØO1 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-2-315/102-075T | 416 | 177 | 210 | 237 | 6 | 315 | 11 | 12 |
MBB-4-315/102-037T | 416 | 177 | 210 | 237 | 6 | 315 | 11 | 12 |
Type | A | B | C | E | F | I | J | K | L |
---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-2-355/125-150T | 560 | 676 | 561 | 262 | 420 | 233 | 407 | 323 | 497 |
MBB-4-355/125-075T | 560 | 676 | 561 | 262 | 420 | 233 | 407 | 323 | 497 |
MBB-2-400/140-300T | 626 | 760 | 614 | 292 | 473 | 250 | 450 | 349 | 547 |
MBB-4-400/140-110T | 626 | 760 | 614 | 292 | 473 | 250 | 450 | 349 | 547 |
MBB-2-450/160-550T | 697 | 853 | 697 | 322 | 530 | 280 | 500 | 379 | 597 |
MBB-4-450/160-220T | 697 | 853 | 697 | 322 | 530 | 280 | 500 | 379 | 597 |
Type | S | T | X | G1 | G2 | H1 | H2 | H3 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-2-355/125-150T | 278 | 169 | 16 | 200 | 283 | 200 | 400 | 457 |
MBB-4-355/125-075T | 278 | 169 | 16 | 200 | 283 | 200 | 400 | 457 |
MBB-2-400/140-300T | 313 | 181 | 16 | 200 | 309 | 200 | 400 | 507 |
MBB-4-400/140-110T | 313 | 181 | 16 | 200 | 309 | 200 | 400 | 507 |
MBB-2-450/160-550T | 347 | 197 | 16 | 240 | 339 | 240 | 480 | 557 |
MBB-4-450/160-220T | 347 | 197 | 16 | 240 | 339 | 240 | 480 | 557 |
Type | N1 | N2 | N3 | N4 | N5 | P1 | P2 | P3 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-2-355/125-150T | 20 | 258 | 400 | 496 | 516 | 210 | 255 | 290 |
MBB-4-355/125-075T | 20 | 258 | 400 | 496 | 516 | 210 | 255 | 290 |
MBB-2-400/140-300T | 20 | 286 | 443 | 552 | 572 | 276 | 305 | 340 |
MBB-4-400/140-110T | 20 | 286 | 443 | 552 | 572 | 276 | 305 | 340 |
MBB-2-450/160-550T | 20 | 314 | 484 | 588 | 628 | 306 | 335 | 370 |
MBB-4-450/160-220T | 20 | 314 | 484 | 588 | 628 | 306 | 335 | 370 |
Type | X1 | X2 | ØO | ØD1 | ØD2 | ØD3 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-2-355/125-150T | 8 | 6 | 11 | 355 | 395 | 426 | 10 | 12 |
MBB-4-355/125-075T | 8 | 6 | 11 | 355 | 395 | 426 | 10 | 12 |
MBB-2-400/140-300T | 8 | 6 | 11 | 400 | 450 | 500 | 10 | 12 |
MBB-4-400/140-110T | 8 | 6 | 11 | 400 | 450 | 500 | 10 | 12 |
MBB-2-450/160-550T | 8 | 6 | 11 | 450 | 500 | 550 | 10 | 15 |
MBB-4-450/160-220T | 8 | 6 | 11 | 450 | 500 | 550 | 10 | 15 |
Type | A | B | C | E | F | G | H | I | J |
---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-2-500/160-1100T | 788 | 988 | 677 | 335 | 610 | 325 | 408 | 365 | 448 |
MBB-4-500/180-110T | 788 | 988 | 677 | 335 | 610 | 325 | 408 | 365 | 448 |
MBB-2-560/200-1850T | 786 | 939 | 722 | 359 | 560 | 365 | 323 | 405 | 363 |
MBB-4-560/200-220T | 786 | 939 | 722 | 359 | 560 | 365 | 323 | 405 | 363 |
MBB-4-630/250-400T | 994 | 1254 | 818 | 425 | 780 | 425 | 513 | 495 | 573 |
MBB-6-630/250-220T | 994 | 1254 | 818 | 425 | 780 | 425 | 513 | 495 | 573 |
MBB-4-710/250-750T | 1026 | 1296 | 960 | 445 | 805 | 460 | 532 | 520 | 592 |
MBB-6-710/250-300T | 1026 | 1296 | 960 | 445 | 805 | 460 | 532 | 520 | 592 |
MBB-4-800/250-1100T | 1287 | 1428 | 1024 | 600 | 860 | 450 | 900 | 530 | 975 |
Type | K | L | S | T | X | G1 | H1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-2-500/160-1100T | 405 | 448 | 269 | 217 | 14 | 125 | 125 |
MBB-4-500/180-110T | 405 | 448 | 269 | 217 | 14 | 125 | 125 |
MBB-2-560/200-1850T | 445 | 403 | 237 | 238 | 12 | 125 | 125 |
MBB-4-560/200-220T | 445 | 403 | 237 | 238 | 12 | 125 | 125 |
MBB-4-630/250-400T | 555 | 633 | 351 | 275 | 16 | 125 | 125 |
MBB-6-630/250-220T | 555 | 633 | 351 | 275 | 16 | 125 | 125 |
MBB-4-710/250-750T | 580 | 652 | 388 | 307 | 18 | 125 | 125 |
MBB-6-710/250-300T | 580 | 652 | 388 | 307 | 18 | 125 | 125 |
MBB-4-800/250-1100T | 582 | 1029 | 14 | 300 | 200 |
Type | N1 | N2 | N3 | N4 | N5 | P1 | P2 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-2-500/160-1100T | 25 | 225 | 434 | 575 | 600 | 315 | 359 |
MBB-4-500/180-110T | 25 | 225 | 434 | 575 | 600 | 315 | 359 |
MBB-2-560/200-1850T | 31 | 265 | 496 | 501 | 521 | 306 | 350 |
MBB-4-560/200-220T | 31 | 265 | 496 | 501 | 521 | 306 | 350 |
MBB-4-630/250-400T | 77 | 327 | 537 | 777 | 802 | 425 | 460 |
MBB-6-630/250-220T | 77 | 327 | 537 | 777 | 802 | 425 | 460 |
MBB-4-710/250-750T | 23 | 340 | 658 | 667 | 694 | 456 | 491 |
MBB-6-710/250-300T | 23 | 340 | 658 | 667 | 694 | 456 | 491 |
MBB-4-800/250-1100T | 30 | 393 | 794 | 1120 | 1150 |
Type | P3 | X1 | X2 | X3 | ØD | ØO | ØO1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-2-500/160-1100T | 395 | 6 | 3 | 2 | 450 | 10 | 15 |
MBB-4-500/180-110T | 395 | 6 | 3 | 2 | 450 | 10 | 15 |
MBB-2-560/200-1850T | 385 | 6 | 2 | 2 | 500 | 10 | 15 |
MBB-4-560/200-220T | 385 | 6 | 2 | 2 | 500 | 10 | 15 |
MBB-4-630/250-400T | 505 | 6 | 4 | 2 | 500 | 10 | 18 |
MBB-6-630/250-220T | 505 | 6 | 4 | 2 | 500 | 10 | 18 |
MBB-4-710/250-750T | 536 | 6 | 4 | 3 | 630 | 12 | 18 |
MBB-6-710/250-300T | 536 | 6 | 4 | 3 | 630 | 12 | 18 |
MBB-4-800/250-1100T | 4 | 1 | 710 | 12 |
Type | A | B | C | E | F | I | J | K | L |
---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | |
MBB-4-800/224-1100T | 1287 | 1428 | 1064 | 600 | 860 | 512 | 900 | 632 | 1029 |
MBB-6-800/250-400T | 1287 | 1428 | 1064 | 600 | 860 | 512 | 900 | 632 | 1029 |
MBB-6-800/250-400T | 1287 | 1428 | 1064 | 600 | 860 | 512 | 900 | 632 | 1029 |
MBB-4-800/280-1500T | 1287 | 1428 | 1064 | 600 | 860 | 512 | 900 | 632 | 1029 |
MBB-6-800/280-550T | 1287 | 1428 | 1064 | 600 | 860 | 512 | 900 | 632 | 1029 |
MBB-8-800/280-550T | 1287 | 1428 | 1064 | 600 | 860 | 512 | 900 | 632 | 1029 |
Type | S | T | X | G1 | G2 | H1 | H2 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-4-800/224-1100T | 539 | 305 | 14 | 400 | 580 | 400 | 800 |
MBB-6-800/250-400T | 539 | 305 | 14 | 400 | 580 | 400 | 800 |
MBB-6-800/250-400T | 539 | 305 | 14 | 400 | 580 | 400 | 800 |
MBB-4-800/280-1500T | 539 | 305 | 14 | 400 | 580 | 400 | 800 |
MBB-6-800/280-550T | 539 | 305 | 14 | 400 | 580 | 400 | 800 |
MBB-8-800/280-550T | 539 | 305 | 14 | 400 | 580 | 400 | 800 |
Type | H3 | N1 | N2 | N3 | N4 | N5 | N6 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-4-800/224-1100T | 975 | 30 | 394 | 757 | 819 | 1120 | 1150 |
MBB-6-800/250-400T | 975 | 30 | 394 | 757 | 819 | 1120 | 1150 |
MBB-6-800/250-400T | 975 | 30 | 394 | 757 | 819 | 1120 | 1150 |
MBB-4-800/280-1500T | 975 | 30 | 394 | 757 | 819 | 1120 | 1150 |
MBB-6-800/280-550T | 975 | 30 | 394 | 757 | 819 | 1120 | 1150 |
MBB-8-800/280-550T | 975 | 30 | 394 | 757 | 819 | 1120 | 1150 |
Type | P1 | P2 | P3 | X1 | ØD | ØO | ØO1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-4-800/224-1100T | 460 | 620 | 660 | 8 | 710 | 12 | 15 |
MBB-6-800/250-400T | 460 | 620 | 660 | 8 | 710 | 12 | 15 |
MBB-6-800/250-400T | 460 | 620 | 660 | 8 | 710 | 12 | 15 |
MBB-4-800/280-1500T | 460 | 620 | 660 | 8 | 710 | 12 | 15 |
MBB-6-800/280-550T | 460 | 620 | 660 | 8 | 710 | 12 | 15 |
MBB-8-800/280-550T | 460 | 620 | 660 | 8 | 710 | 12 | 15 |
Type | A | B | C | E | F | G | H |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-4-900/250-1850T | 1385 | 1616 | 1169 | 645 | 980 | 110 | 110 |
MBB-6-900/250-550T | 1385 | 1616 | 1169 | 645 | 980 | 110 | 110 |
MBB-4-900/280-1850T | 1385 | 1616 | 1169 | 645 | 980 | 110 | 110 |
MBB-6-900/280-750T | 1385 | 1616 | 1169 | 645 | 980 | 110 | 110 |
Type | I | J | K | L | S | T | G1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-4-900/250-1850T | 545 | 1000 | 657 | 1029 | 513 | 330 | 440 |
MBB-6-900/250-550T | 545 | 1000 | 657 | 1029 | 513 | 330 | 440 |
MBB-4-900/280-1850T | 545 | 1000 | 657 | 1029 | 513 | 330 | 440 |
MBB-6-900/280-750T | 545 | 1000 | 657 | 1029 | 513 | 330 | 440 |
Type | G2 | H1 | H2 | H3 | N1 | N2 | N3 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-4-900/250-1850T | 607 | 880 | 1058 | 975 | 57.5 | 307 | 557 |
MBB-6-900/250-550T | 607 | 880 | 1058 | 975 | 57.5 | 307 | 557 |
MBB-4-900/280-1850T | 607 | 880 | 1058 | 975 | 57.5 | 307 | 557 |
MBB-6-900/280-750T | 607 | 880 | 1058 | 975 | 57.5 | 307 | 557 |
Type | N4 | N5 | N6 | N7 | P1 | P2 | P3 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-4-900/250-1850T | 762 | 807 | 1057 | 1115 | 472 | 560 | 620 |
MBB-6-900/250-550T | 762 | 807 | 1057 | 1115 | 472 | 560 | 620 |
MBB-4-900/280-1850T | 762 | 807 | 1057 | 1115 | 472 | 560 | 620 |
MBB-6-900/280-750T | 762 | 807 | 1057 | 1115 | 472 | 560 | 620 |
Type | X1 | X2 | X3 | Xx | ØD | ØO | ØO1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
MBB-4-900/250-1850T | 10 | 4 | 8 | 32 | 710 | 14 | 16 |
MBB-6-900/250-550T | 10 | 4 | 8 | 32 | 710 | 14 | 16 |
MBB-4-900/280-1850T | 10 | 4 | 8 | 32 | 710 | 14 | 16 |
MBB-6-900/280-750T | 10 | 4 | 8 | 32 | 710 | 14 | 16 |
Type | _ |
---|---|
mm | |
MBB-4-1000/355-3700T | |
MBB-6-1000/280-1100T | |
MBB-6-1000/355-1500T | |
MBB-8-1000/355-550T |
